Ip by using PPPOE

My YunoHost server

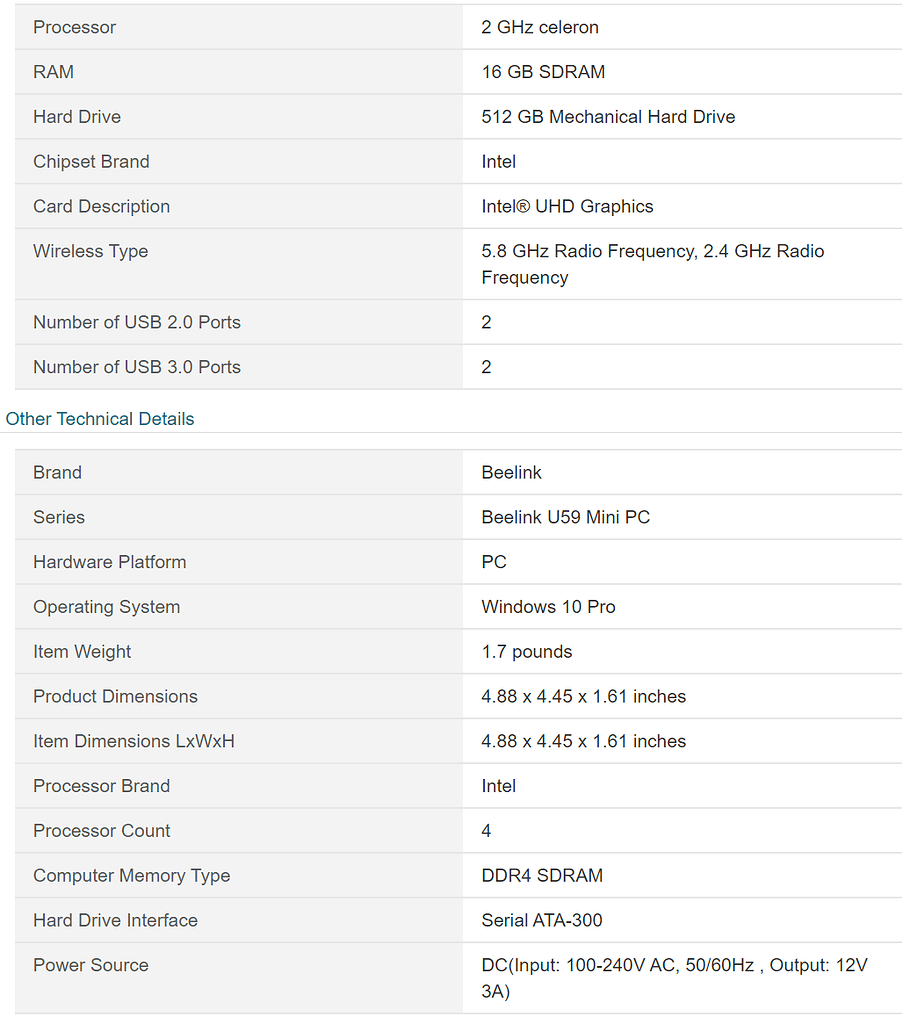

Hardware: Beelink U59
YunoHost version: 4.3.2.2 (stable)
**I have access to my server : Through SSH & through the webadmin & direct access via keyboard / screen
Are you in a special context or did you perform some particular tweaking on your YunoHost instance ? : yes, runing backports package because my GPU is not available with Debian 10, so I upgraded kernel of linux in 5.X Backports and forced it in the grub to launch the GPU pilots.

Description of my issue

I am trying to configure my server with a PPPOE Fixed adress. So my provider give me a user ID and password and I configured on Debian 10 the ppp connection. Here is what I get :

root@cyragroup:/home/bencg# ip address
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp2s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 84:47:09:07:a8:be brd ff:ff:ff:ff:ff:ff
inet 10.92.20.139/19 brd 10.92.31.255 scope global dynamic noprefixroute enp2s0
valid_lft 511sec preferred_lft 511sec
inet6 fe80::8647:9ff:fe07:a8be/64 scope link noprefixroute
valid_lft forever preferred_lft forever
3: wlp1s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether ba:05:cf:3b:2f:14 brd ff:ff:ff:ff:ff:ff
root@cyragroup:/home/bencg# pon
/usr/sbin/pppd: In file /etc/ppp/peers/provider: unrecognized option '/dev/modem'
root@cyragroup:/home/bencg# pon padaf-provider
Plugin rp-pppoe.so loaded.
root@cyragroup:/home/bencg# ip address
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp2s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 84:47:09:07:a8:be brd ff:ff:ff:ff:ff:ff
inet 10.92.20.139/19 brd 10.92.31.255 scope global dynamic noprefixroute enp2s0
valid_lft 491sec preferred_lft 491sec
inet6 fe80::8647:9ff:fe07:a8be/64 scope link noprefixroute
valid_lft forever preferred_lft forever
3: wlp1s0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether ba:05:cf:3b:2f:14 brd ff:ff:ff:ff:ff:ff
9: ppp0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1492 qdisc pfifo_fast state UNKNOWN group default qlen 3
link/ppp
inet 195.88.181.6 peer 195.85.248.252/32 scope global ppp0
valid_lft forever preferred_lft forever

As you can see, in 9, we can fid my ppp connection. I woudlike that Yunohost take this connection and not the local ip adresse wich is not accessible from outside

Is there a configuration in Yunohost or in Debian to do so ? Thanks in advance.


:fr: Français

Description du problĂšme

J’essaye de configurer mon serveur avec une adresse fixe PPPOE. Donc mon fournisseur me donne un identifiant et un mot de passe et j’ai configurĂ© sur Debian 10 la connexion ppp. Voici ce que j’obtiens : cf encart ci-dessus.

Comme vous pouvez le voir, en 9, nous pouvons trouver ma connexion ppp. J’aimerais que Yunohost prenne cette connexion et non l’adresse ip locale qui n’est pas accessible de l’extĂ©rieur

Existe-t-il une configuration dans Yunohost ou dans Debian pour le faire ? Merci d’avance.

Hi Benjii,

Welcome to the forums!

2: enp2s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
inet 10.92.20.139/19 brd 10.92.31.255 scope global dynamic noprefixroute enp2s0
9: ppp0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1492 qdisc pfifo_fast state UNKNOWN group default qlen 3
inet 195.88.181.6 peer 195.85.248.252/32 scope global ppp0

What do you mean with ‘take’? I used to have a public IP and a local IP on a Yunohost, and I could reach the server on both:

  • The admin interface or SSH on internal/external IP
  • The website only on external IP, because that was configured in DNS

Diagnosis would sometimes mix things up, and state the wrong address with a warning.

When you set up your DNS to point to 195.88.181.6, do you not see your Yunohost when visiting the address?

Hi @wbk,

Thanks a lot for your answer.

No justly, this is my problem. When you are typping this IP adresse, there is nothing on it
 (even before configuring DNS).

Yunohost for now is taking this address : 85.118.37.109, which is the VPN address. ANd the local one on the network : 10.92.20.139.

So I woudlike by default that the address is 195.88.181.6, on the computer and therefore on Yunohost.

Thanks in advance,

Have you remove some part of your ip a command ? You speak about “85.118.37.109, which is the VPN address” i don’t see this ip in the result of the command.

If you speak about an openvpn (like with vpnclient), this vpn probably change your default route.

The command ip route could be useful in your case.

You can change the default route to make all the network packets except the one destinated to your routeur, to go through your ppp interface.

Problem is fixed here ! Thanks to all :slightly_smiling_face:

2 Likes

Great! Consider marking your thread as solved, to help subsequent users find a solution faster.

Have a lot of fun with your Yunohost :slight_smile:

2 Likes

Par curiositĂ© ton tunnel pppoe est directement fourni par ielo ? Ça coĂ»te cher ?

Non, c’est l’entreprise qui gĂšre l’installation internet sur place qui me l’a fournit. C’est 15€/mois pour l’IP dĂ©diĂ©
